GM70

Integrated Amplifier

Introducing the GM70 Integrated Amplifier by Destination Audio – the culmination of years of anticipation and engineering excellence. This amplifier represents the pinnacle of our audio craftsmanship, designed to elevate your listening experience to heights previously unimagined. Featuring a bridge rectifier EEC40, a 5687 dual triode, and a unique 6W6 power section (distinct from the more common 6V6), the GM70 stands as a testament to innovative design and sonic purity.

Single ended Class A design with zero feedback. Amorphous double C-core custom made output transformers. Custom made power transformers and chokes.
Separate Power Supply.
Duelund PIO capacitors.
Audio grade Japanese electrolytic capacitors and resistors.
Point to point wiring, separate power supply.

Technical Specification

Power output20W
Frequency response10Hz~85kHz(-1.5dB)
THD1% (1 kHz)
S/N Ratio87 dB
Input Impedance100 kΩ
Output Impedance4Ω and 8Ω
Power RequirementsUSA 115V (60Hz) / EU 235V (50Hz)
TubesECC40 x2, 5687 x2, 6W6 x2, GM70 x2
Power consumption350W

Dimensions

Width312 mm / 12 in
Height255 mm / 18 in
Depth466 mm / 18 in
Weight75 kg / 165 lbs

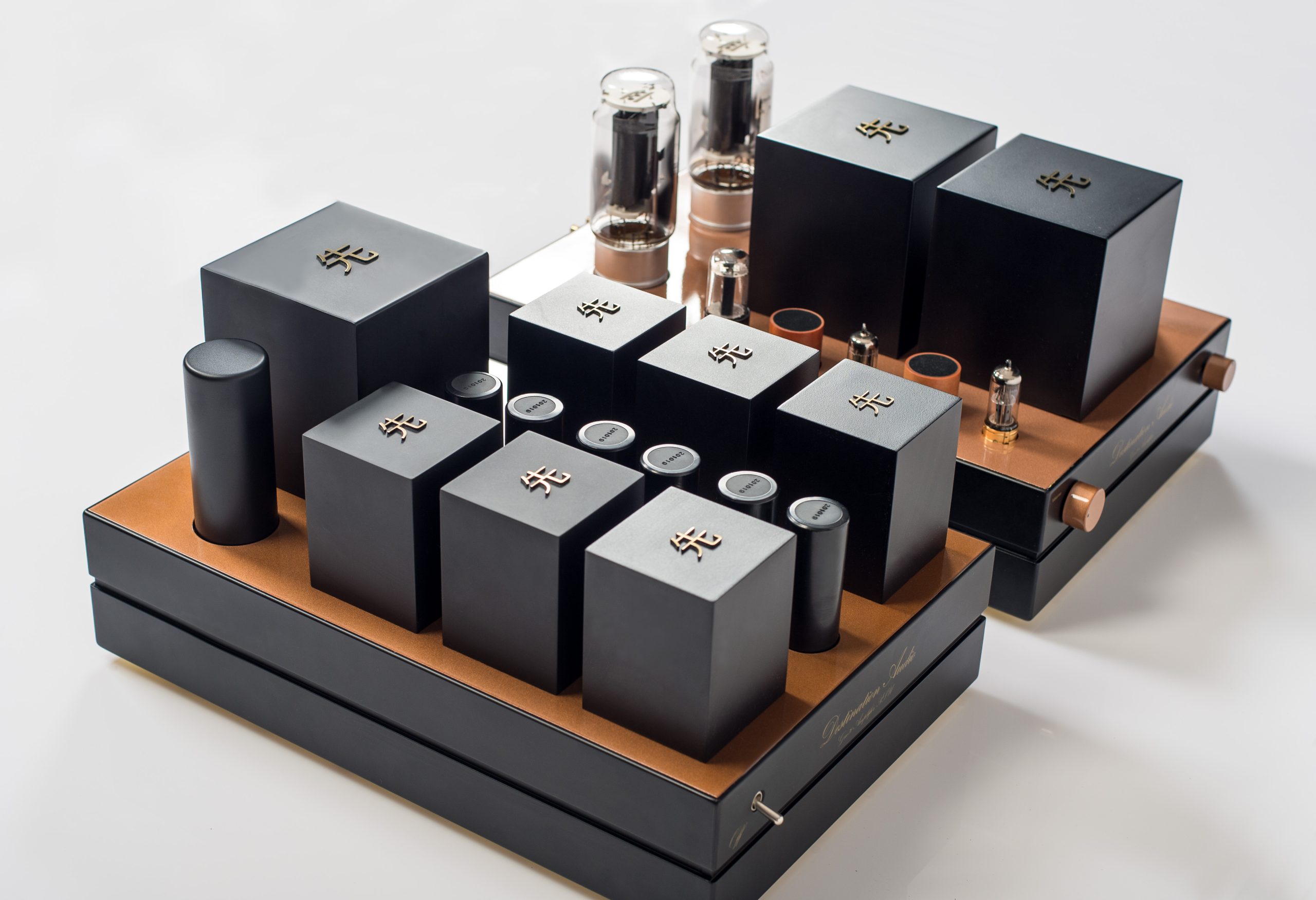

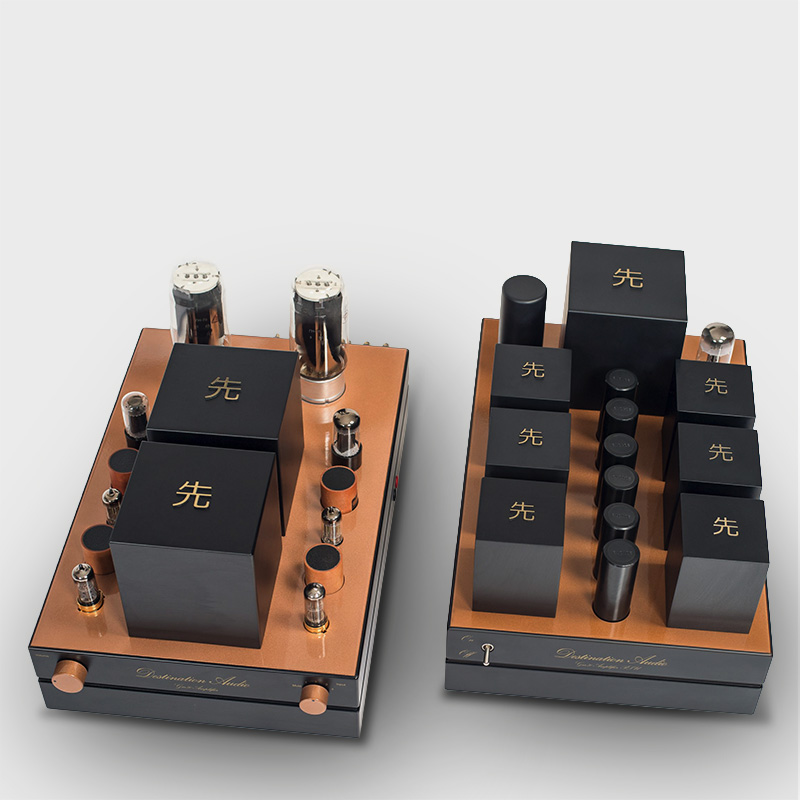

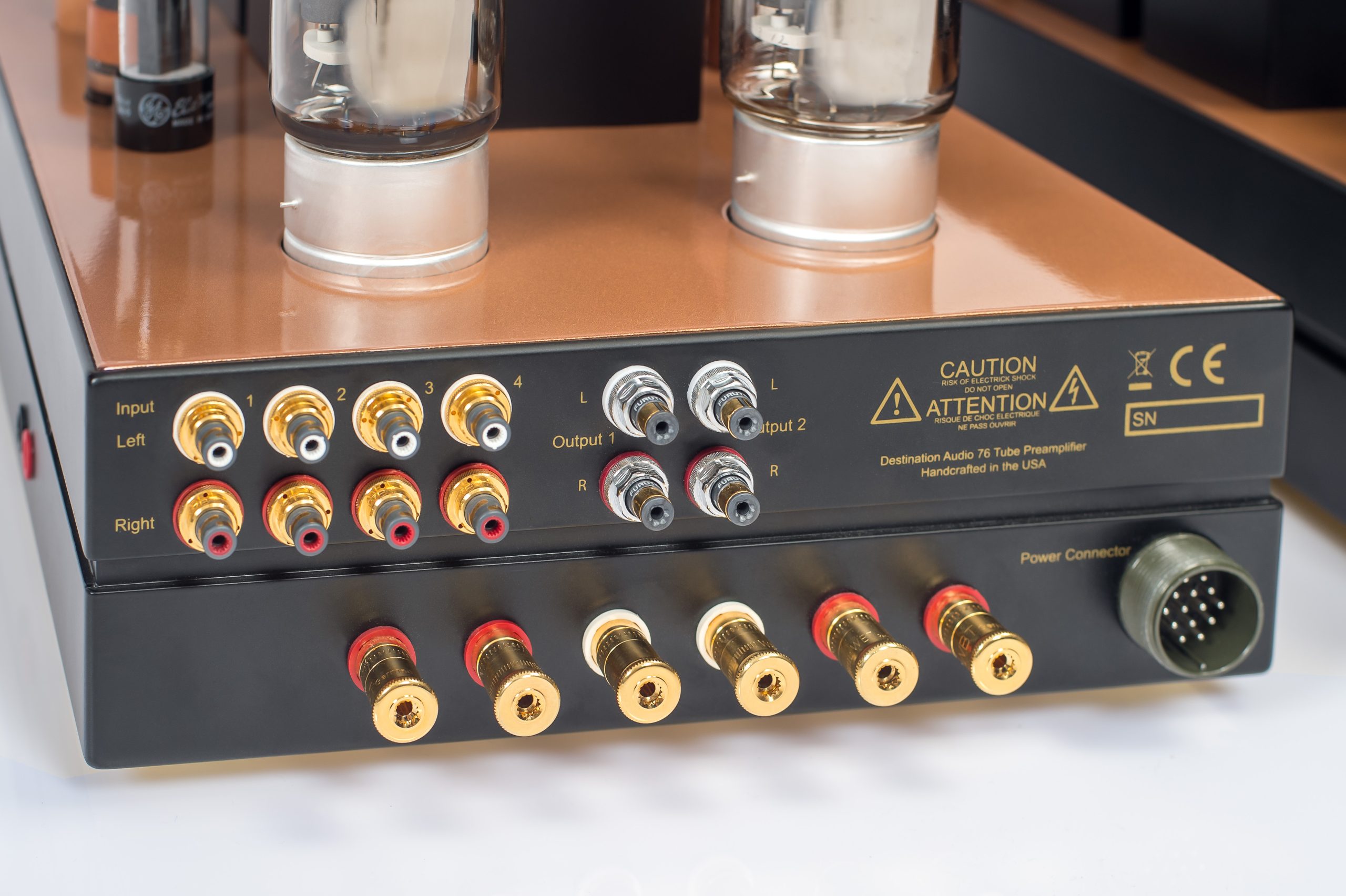

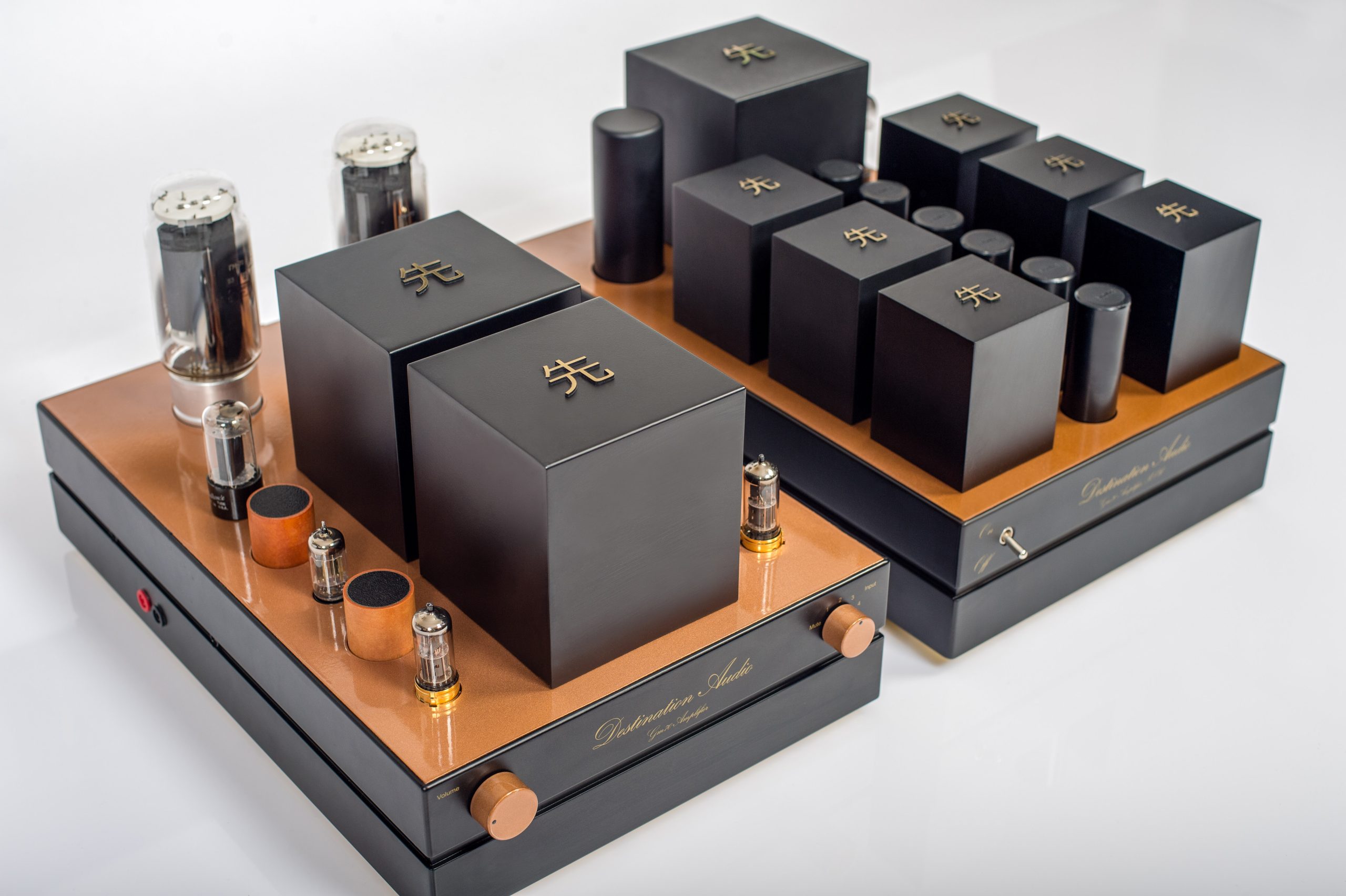

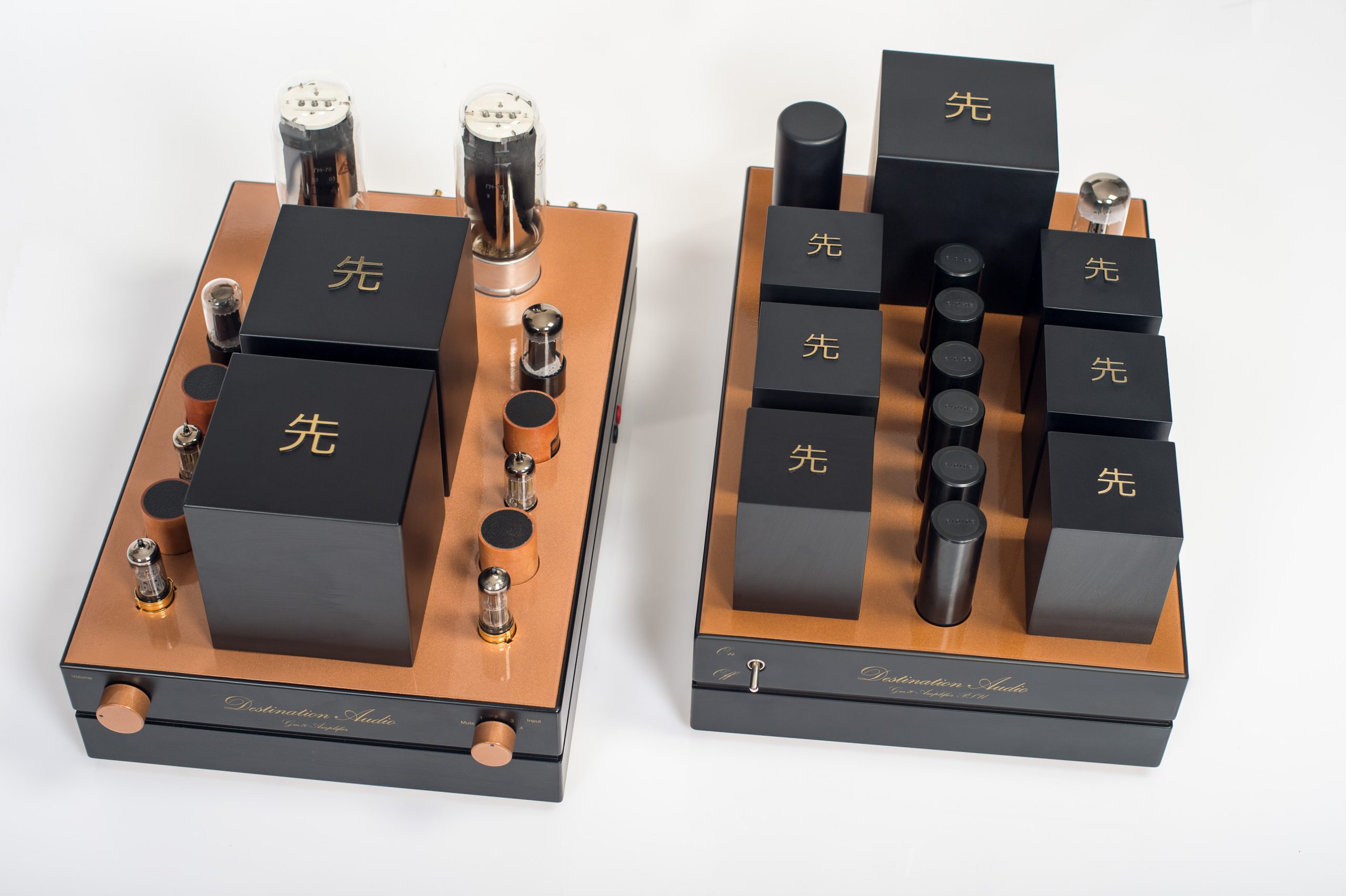

Gallery
